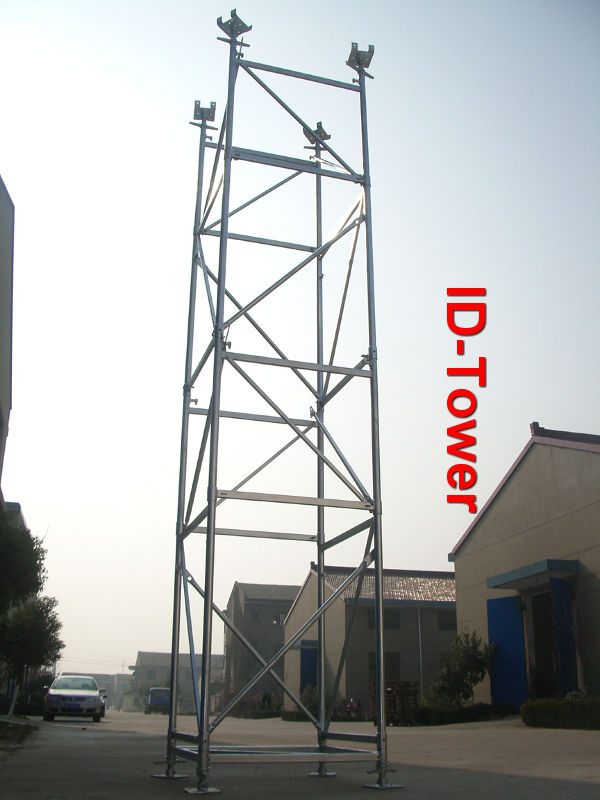

The ID-Tower  is one of the strongest steel frame supports there is. In spite of its small dimensions, it copes with high vertical and horizontal loading ( loading capacity up to 200 kN ) – and all this without bracing to discharge the loads. Even loads at different heights on each of the four posts are no problem for the ID-Tower. Thanks to its small footprint of only 1 x 1 m, the ID-Tower system is always more than a match for difficult site conditions, e.g. confined space and high load concentrations. The closed, torsion-resistant frames, the diagonals and the jacks are hot-dip galvanized and dimensioned to withstand the roughest treatment year after year.

Mix and match

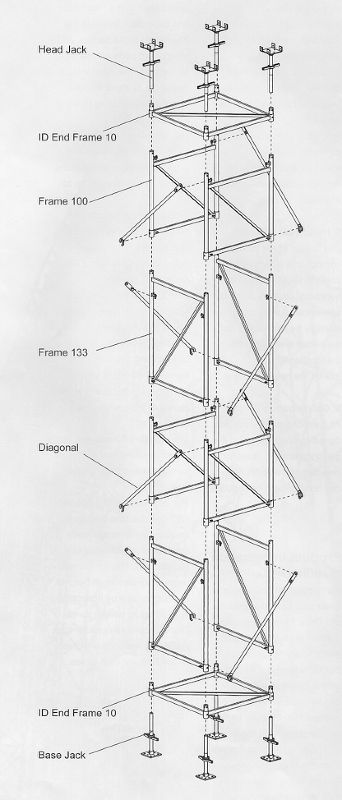

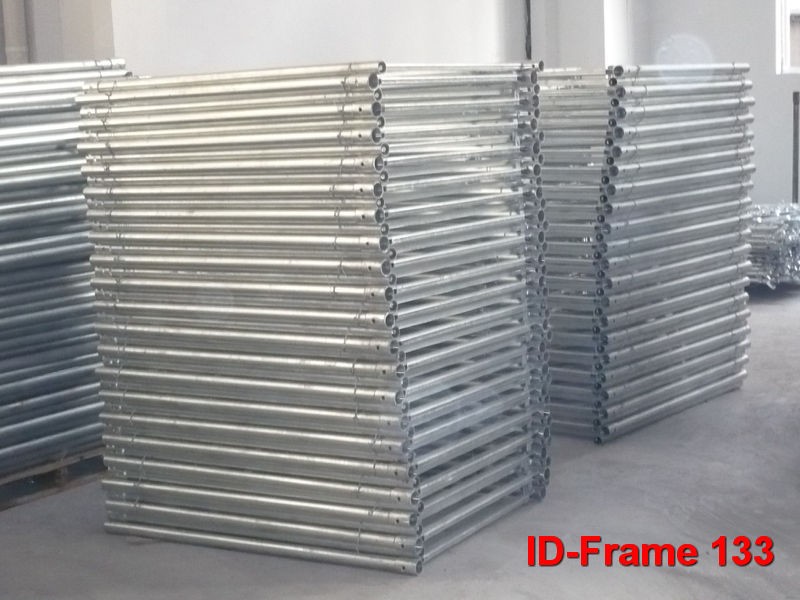

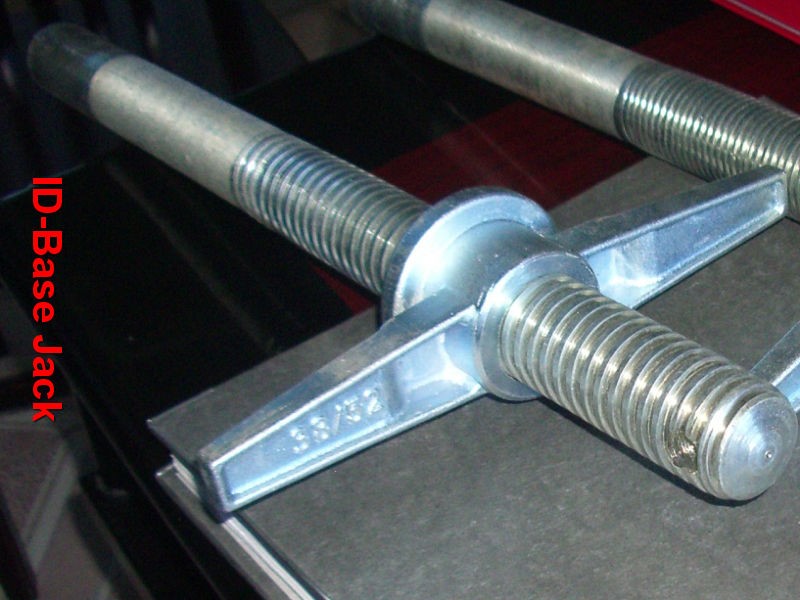

The entire system consists of only five components enabling highly load-resistant support towers to be built to any desired height. These are the frame in two sizes (100 and 133 cm tall), the head and base jacks, the end frame and the diagonals for bracing. Since its design principle is absolutely logical, laborers who have never used this system get along with it well from the outset.
One-man assembly on its site

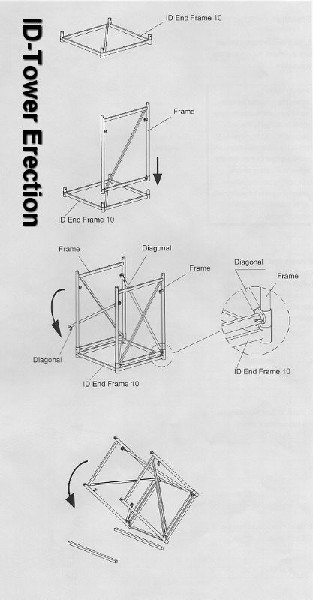

It takes a single man to quickly assemble an ID-Tower on its site. The heaviest component weighs less than 20 kg. Quick-action connectors integrated in the frames ensure high-speed assembly and disassembly with just a blow of the hammer. Easily lost, small accessory parts are not necessary for the ID-Tower system.

Our ID-Tower parts are 100% compatible with the ID 15 parts from Huennebeck.

For more information click:

Steel frame supports with high load capacity ► ID 15new (huennebeck.com)
